Superior Water Quality for Optimum Plant Growth

Designed for Cultivation Operations Treating Under 1000 Gallons of Water Per Day

Find a Distributor
Left_45_ext(1)

Lotus Nanobubble Generator

Improve irrigation water to promote optimum plant growth and reduce inputs with Moleaer’s LotusTM patented nanobubble generator, a highly efficient gas-injection technology that converts bulk oxygen into nanobubbles and supersaturates irrigation water with high levels of dissolved oxygen (DO).

Due to their small size, nanobubbles possess unique physical and chemical properties that improve plant and root health, including preventing and suppressing diseasing causing pathogens, increasing nutrient uptake efficiency and enabling plants to better withstand environmental stressors.

  • 10 GPM flow rate
  • Assembled in the USA
  • Corrosion resistant
  • Self-priming, energy efficient pump
  • Designed for oxygen gas only
  • Easy installation & maintenance
  • Robust with only two moving parts
Find a Distributor

Improve Crop Health, Resilience & Yields

Low levels of dissolved oxygen (DO) in irrigation water leads to poor water quality, increased pathogens and sub-optimal plant growth with low crop yields. Raising DO levels with oxygen nanobubbles in irrigation water results in improved plant performance.

Boost Plant Vigor & Performance Increasing DO levels with oxygen nanobubbles promotes healthy root systems and beneficial bacteria growth resulting in improved nutrient uptake efficiency, better plant resilience to environmental stressors, increased photosynthetic capacity, and increased water uptake efficiency.
Control Pathogens, Algae & Biofilm Nanobubbles also provide added benefits for growers looking to reduce reliance on harmful chemical and pesticide applications by acting as a chemical-free agent to reduce harmful pathogens and biofilms in irrigation systems.
Produce More with Less Irrigation water supersaturated with oxygen nanobubbles improves plant health from early growth to flowering resulting in improved crop yields and nutrient content allowing growers to produce more with less.

Lotus Nanobubble Generator

Moleaer’s Lotus generator is designed for discerning micro-growers looking for water quality improvement.

Lotus

Lotus

The Lotus nanobubble generator uses patented nanobubble technology to deliver continuous benefits for healthier plants. An oxygen gas tank is required (not included) to operate the Lotus.

Left_45_ext(1)

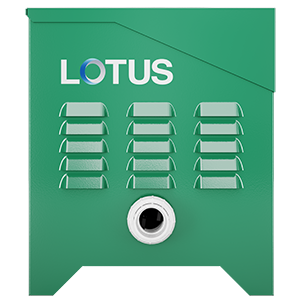

Back-2
Lotus Right-1
Front-3
Back_45-1

Specifications

Tomatoes Greenhouse

How it Works

The Lotus nanobubble generator easily integrates with your existing water tank to recirculate water before it’s pumped out to your grow operations. Depending on your tank setup, the Lotus inlet is installed directly into the side of your tank or adjacent manifold pipe, with the discharge pipe going into the top of the tank. By recirculating the water in your tank, the Lotus continuously injects nanobubbles to:

  • Boost plant and root health
  • Improve water quality
  • Suppress pathogenic growth
  • Reduce biofilm



Left_45 Labels
The Lotus recirculates water through Moleaer's proprietary nanobubble generator, producing nanobubbles and increasing dissolved oxygen.
Nanobubbles reduce emitter clogging and biofilm buildup in pipes, reducing the need for chemical treatments like hydrogen peroxide.
Connect the Lotus to your irrigation tank to achieve nanobubble-infused water through recirculation.
Increased dissolved oxygen improves root respiration, nutrient, uptake, and plant health. moleaer-nanobubbles-roots-leafs
Nanobubbles act as a mild, chemical-free oxidant that reduces pathogens, bacteria and scours biofilm.
lotus-detail
Left

External Oxygen Gas Required

An oxygen tank must be connected to the Lotus to operate, and the Lotus is rated for oxygen gas only.

Nanobubble technology is the most efficient way to increase levels of dissolved oxygen (DO) with growers achieving up to 300% more DO at a lower cost of oxygen input and with no additional resources required.

Front-1

Simple Maintenance

With only two moving parts, the Lotus nanobubble generator requires very little maintenance once installed. The robust design and corrosion resistant material ensures the Lotus will hold up to constant use in your grow facility.

“We are thrilled with the results we have seen at our Revol Greens greenhouse since installing the [nanobubble generator]”

Steve Amundson

Revol Greens

Read the Case Study

"Not only did we experience a 25% reduction in growth cycle, but we were able to achieve a higher yield per square foot as well. Combined with the easy installation and quick payback period, I see this as the new standard for hydroponic facilities around the world."

Jeremy Marsh

Rocky Mountain Fresh

Read the Case Study

Case Studies

Moleaer’s Lotus nanobubble generators are custom-tailored for grow facilities under 200 LED grow lights or under 1000 gallons of water per day, so all types of grow facilities can benefit from the power of nanobubble technology.

Trusted by Over 500 Growers WorldWide

Moleaer's nanobubble technology is independently validated by experienced engineering and innovation teams at world-renowned universities.

Find an Authorized Distributor

idc-logo-web
IDC - Irrigation Design & Construction 112200 CA-33 | Patterson, CA 95363 | +1 (209) 894-6407 Visit website
EES logo
Elevated Equipment Supply 2651 E. 45th Street | Vernon, CA 90058 | +1 (213) 894-9910 Visit website

Already own a lotus nanobubble generator?

Get installation, operation, maintenance tips and videos, access the owner's manual, and review warranty information.

Access Owner's Manual

Looking to treat more water?

Moleaer delivers nanobubble technology that scales to meet your needs, including inline, pumpless nanobubble injection and large acreage solutions.

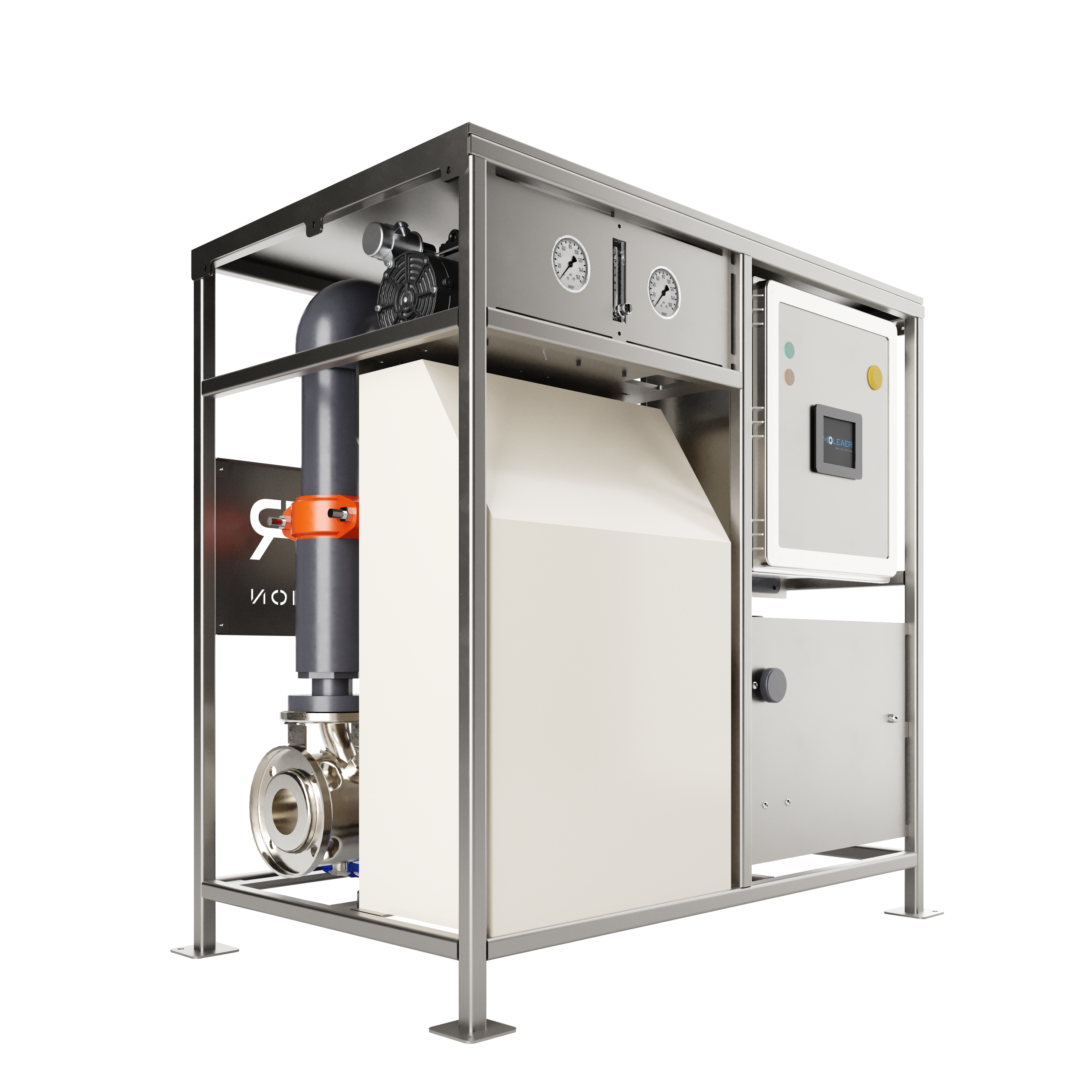

Neo Nanobubble Generator 50-250 GPM | Day & Drain Tank Recirculation for Large Greenhouses Learn More
Nexus Nanobubble Generator 200-500 GPM | Inline Irrigation Systems with Existing Pumps Learn More
Titan Series - Coming Soon! 500-5000 GPM | Large Acreage Irrigation Systems
