All-Natural and Chemical-Free Method for Aquatic Management

Moleaer’s Clear is an all-natural, chemical-free method to saturate lake and ponds of all sizes with dissolved oxygen (DO). Sustaining DO levels throughout the water column and by penetrating the muck layer helps reduce the nutrient recycling rate into the water from the sediment. Phosphorus cycling, in particular, is one the primary factors known to trigger and sustain algae blooms. Available in 50 and 150 gpm flow rates, the durable Clear is easy to install, operate, and maintain.

Clear
Left Elevated A
Right 45 Elevated A

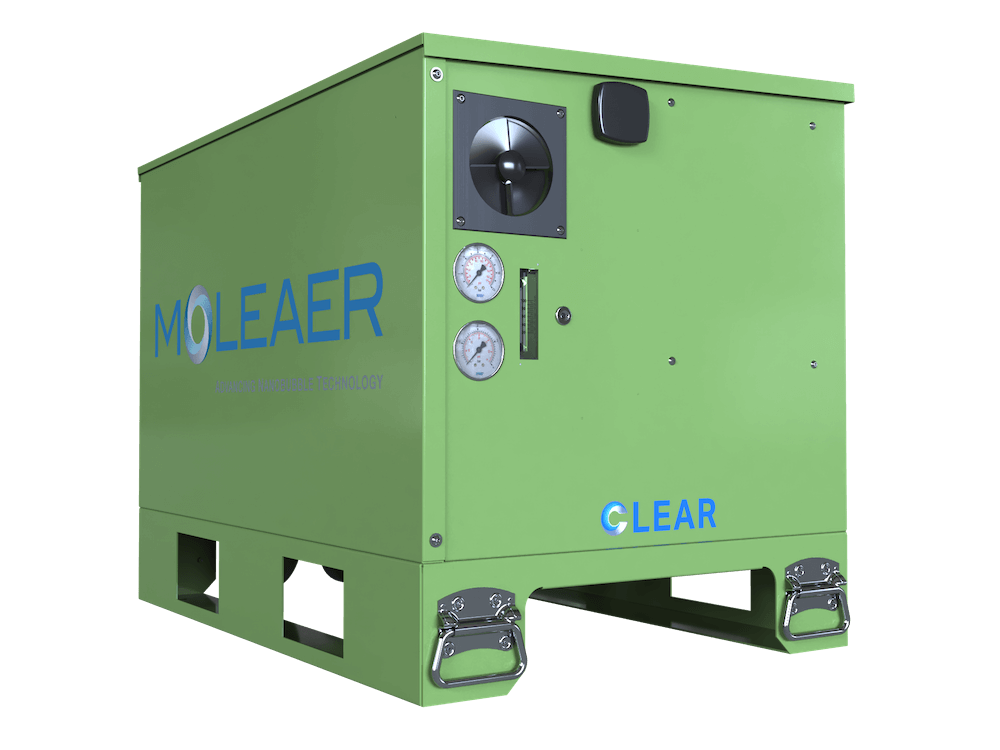

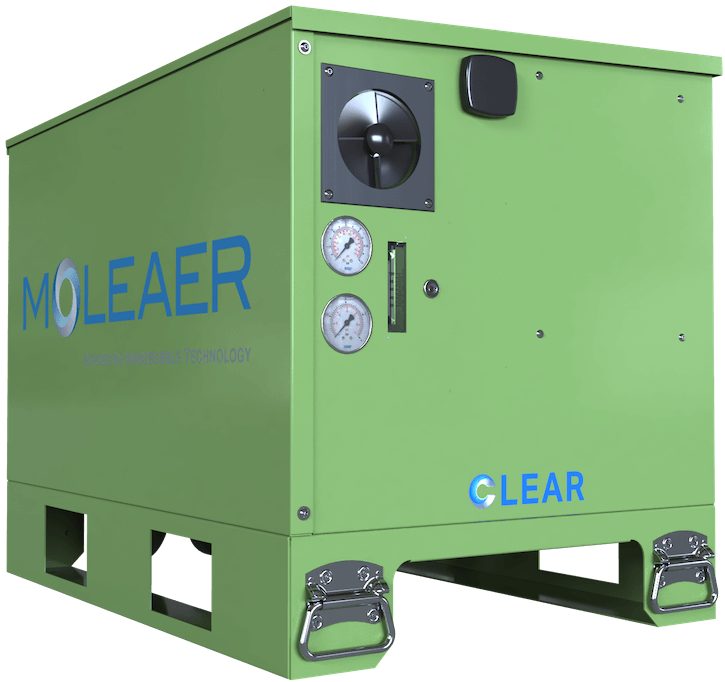

Back 45 Elevated A
Clear thumb
Left Elevated A thumb
Right 45 Elevated A thumb
Back 45 Elevated A thumb
  • 90% standard oxygen transfer efficiency
  • <65 dB (optional quiet package available)
  • Improved water quality and clarity
  • 100 nm-sized bubbles
  • >1 billion nanobubbles / mL
  • Oxygenates entire water column
  • Easy to install
  • Compact & lightweight
  • Reduced nutrient recycling rate
  • Enriched oxygen option available
Models Clear 50 Clear 50 (230V) Clear 150 Clear 150 Enriched
Liquid Flow Capacity
Flow Rate, GPM (m3/h) 50 (11) 50 (11) 150 (34) 150 (34)
Indicated Gas Flow Range Maximum, CFH (m3/hr) 20 (0.6)
Indicated Gas Flow Range Recommended, CFH (m3/hr) 5 (0.1) 5 (0.1) 15 (0.4) 15 (0.4)
Operating Parameters
Temperature Tolerance, PVC, °F (°C) 41 - 140 (5 - 60)
Standard Oxygen Transfer Efficiency > 90%
Solids, inches (mm) Up to 3/8 (10)
Gas Feed1
Gas Pressure Range Minimum, PSIG (bar) 60 (4.1)
Gas Pressure Range Maximum, PSIG (bar) 120 (9.7)
Pump
Pump Model Pentair Sparus 160
Wetted Parts Materials Polypropylene/316 SS/Buna
Voltage 115 230 230 230
Phase 1
Hz 60
HP 3/4 3/4 3 3
Compressor
Compressor Model Gast 86R Single Cylinder
Voltage 115 230 230 230
RPM 1725 1735 1725 1725
HZ 50/60
Total Draw, Amperage (Including Pump/Comp) 12 6.8 15 18.2
Total Draw, Horsepower (kW) 0.875 (0.652) 3.125 (2.32) 3.37 (2.51)
Controls
Pressure Gauges (bar) Wika 2.5" (60/160) (4-11)
Rotameter, CFH (KNOBLESS) 0 - 20 0 - 20 0 - 20 0 - 20
Motor Starter Switch
Enclosed Motor Starter with OL reset button
Model 9-45A rating with 24 VDC input
Resistance Rating Watertight / NEMA 4 X
Unit Connections - Female Socket Connect
Inlet, inches (mm) 2 (50) 2 (50) 3 (75) 3 (75)
Discharge, inches (mm) 2 (50) 2 (50) 3 (75) 3 (75)
Dimensions and Weight
Height, inches (cm) 26 (66)
Width, inches (cm) 34 (86)
Length, inches (cm) 38 (96.5)
Weight, lb (kg) 164 (74) 198 (90) 202 (92)
General Note
3” inlet and outlet Customer piping is recommended for the Clear 150 and Clear 150 Enriched
Nitrogen Separator Details (Enriched Option Only)
Nitrogen Separator Model Prism PA3010
Max Pressure PSIG(BAR) 385 (26.5)
Max Temp °F (°C) 150 (65.6)


EPA Establishment Number 94231-CA-1
