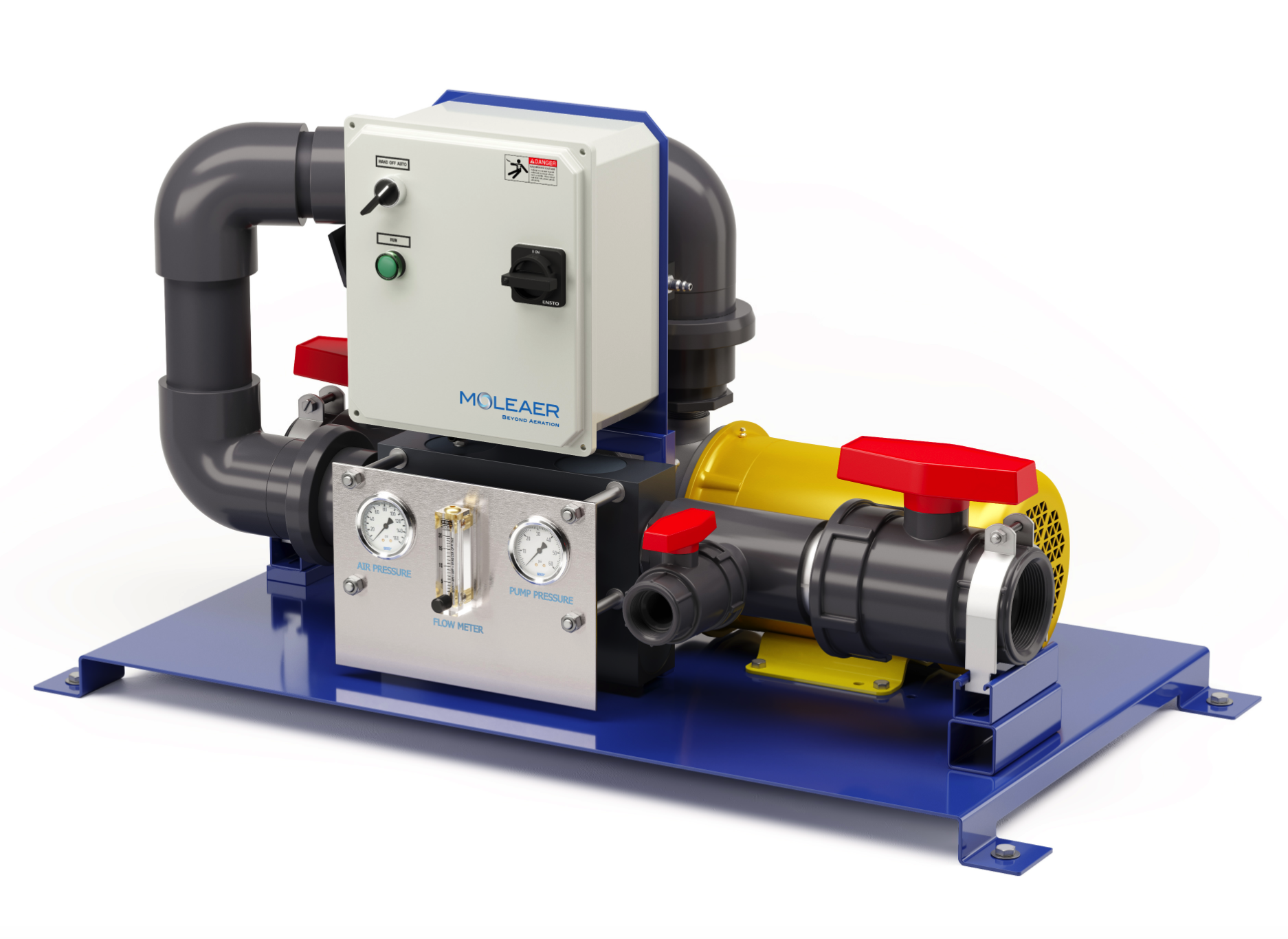

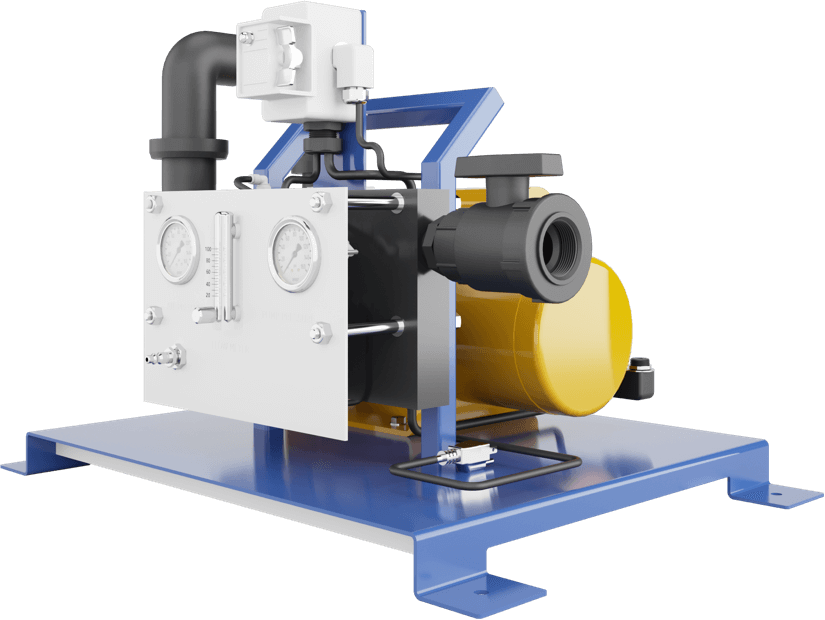

XTB

Moleaer’s plug-and-play XTB nanobubble generators are a highly efficient gas-to-liquid injection technology featuring over 85% transfer efficiency, providing maximum gas utilization and water quality improvement, and enhancement of treatment processes.

The XTB can utilize an array of pump options. It is designed to be connected to any pressurized gas, providing end users with the flexibility to easily integrate nanobubble technology into their existing processes, regardless of the compressed gas available or being utilized to treat, preserve or enrich the liquid solution.

The XTB comes with a standard centrifugal pump and manual gas flow control and is designed to utilize external pressurized gas sources across a variety of process applications.

Neo

Customers have deployed our XTB in the following applications:

  • Water & Wastewater Treatment
    • Biological Aeration/Supplemental Aeration
    • Odor Control
    • DAF
    • Reaeration and Recarbonation
  • Aquaculture / Fish Farming
  • Mining
    • Heap Leaching
    • Flotation
  • Oil & Gas
    • Metal and Sulfide Oxidation
    • Oil/Water Separation
  • Cooling Towers
    • Algae Control
    • Biofilm Control*

*Organic, bio-based nutrients may impact biofilm accumulation rates.

Features & Benefits


  • 200 nm-sized bubbles produced in excess of 1 billion nanobubbles / mL
  • Gas transfer at any depth of water
  • Up to 85% oxygen transfer efficiency
  • Plug and play installation
  • Variable gas feed rate with auto gas shut off if loss of prime feed
  • Pumped and pumpless options for integration flexibility and energy optimization
  • Corrosion resistant stainless-steel frame and components for outdoor installation

Specifications

Models 25 XTB NPE 25 XTB NPO 50 XTB NPE 50 XTB NPO 100 XTB 200 XTB
Liquid Flow Capacity
Flow Rate, GPM 25 25 50 50 100 200
Maximum Liquid Pressure, PSIG 22
Operating Parameters
Temperature Tolerance, °F 41 - 140
Solids, inches < 3/8
Gas Feed
Maximum Gas Pressure, PSIG 120
Indicated Gas Flow Range, CFH 0 - 2.5 0 - 2.5 0 - 5 0 - 5 0 - 20 0 - 30
Electrical Power
Voltage 115 115 115 115 460 460
Phase 1 1 1 1 3 3
Hz 60 60 60 60 60 60
Total HP 0.75 1.5 2 2 3 5
Total Amp Draw 5.2 9.7 12.9 12.9 4.8 8.1
Pump
Pump Type NPE, TEFC NPO, TEFC NPE, TEFC NPO, TEFC NPO, TEFC NPO, TEFC
Wetted Parts Buna/Stainless Steel/Viton
Starter Onboard NEMA 4X
Connections
Customer pipe connection, inches* 1.5 1.5 2 2 3 3
Inlet (FNPT), inches, 1.25 1.25 2 2 2 3
Discharge (FNPT), inches 1 1 1.5 1.5 2 3
Air Fitting3, inches 1/4 Industrial Air
Dimensions & Weight
Height, inches 19 19 19 19 27 27
Width, inches 28 28 28 28 45.5 45.5
Length, inches 20 20 20 20 23.5 23.5
Weight, lb 85 85 90 90 180 220

Note 1: Standard pump, optional pumps are available including submersible, trash, and specialty
Note 2: Connections can be flanged or sanitary upon request
Note 3: CGA 022 fitting 1/4" MNPT (BSPTF) avaialble for use with Oxygen Tanks
Note 4: Standard PVC Body with standard centrifugal pump

*Must use a reducer to adapt pipe connection to the unit inlet/discharge. Only use the suggested pipe connection. Indicated gas flow range represented under pressure and not represented under standard conditions.

View Datasheet U.S.
Models 25 XTB NPE 25 XTB NPO 50 XTB NPE 50 XTB NPO 100 XTB 200 XTB
Liquid Flow Capacity
Flow Rate, m3/h 6 6 11 11 23 45
Maximum Liquid Pressure, bar 1.5
Operating Parameters
Temperature Tolerance, °C 5 - 60
Solids, mm < 9.5
Gas Feed
Maximum Gas Pressure, bar 8.5
Indicated Gas Flow Range, L/Min. 0 - 1.2 0 - 1.2 0 - 2.4 0 - 2.4 0 - 9.4 0 - 14
Electrical Power
Voltage 115 115 115 115 460 460
Phase 1 1 1 1 3 3
Hz 60 60 60 60 60 60
Total kW 0.6 1.12 1.48 1.48 2.2 3.73
Total Amp Draw 5.2 9.7 12.9 12.9 4.8 8.1
Pump
Pump Type NPE, TEFC NPO, TEFC NPE, TEFC NPO, TEFC NPO, TEFC NPO, TEFC
Wetted Parts Buna/Stainless Steel/Viton
Starter Onboard NEMA 4X
Connections
Customer pipe connection, mm* 38.1 38.1 50.8 50.8 76.2 76.2
Inlet (FNPT), mm 31.8 31.8 50.8 50.8 50.8 76.2
Discharge (FNPT), mm 25.4 25.4 38.1 38.1 50.8 76.2
Air Fitting3, mm 6.35 Industrial Air
Dimensions & Weight
Height, cm 48 48 48 48 69 69
Width, cm 71 71 71 71 116 116
Length, cm 51 51 51 51 60 60
Weight, kg 38.6 38.6 40.9 40.9 81.6 100

Note 1: Standard pump, optional pumps are available including submersible, trash, and specialty
Note 2: Connections can be flanged or sanitary upon request
Note 3: CGA 022 fitting 1/4" MNPT (BSPTF) avaialble for use with Oxygen Tanks
Note 4: Standard PVC Body with standard centrifugal pump

*Must use a reducer to adapt pipe connection to the unit inlet/discharge. Only use the suggested pipe connection. Indicated gas flow range represented under pressure and not represented under standard conditions.

View Datasheet E.U.
